Pave-Land = Specification Information

These critical testing criteria are the value of avoiding legal problems resulting from lawsuits that stem from inappropriate ground cover. Unity meets or exceeds these ASTM, CPSC & ADA standards by up to 40% when compared with other competing products on the market today. To download the Pave-Land "product data sheet", click here.

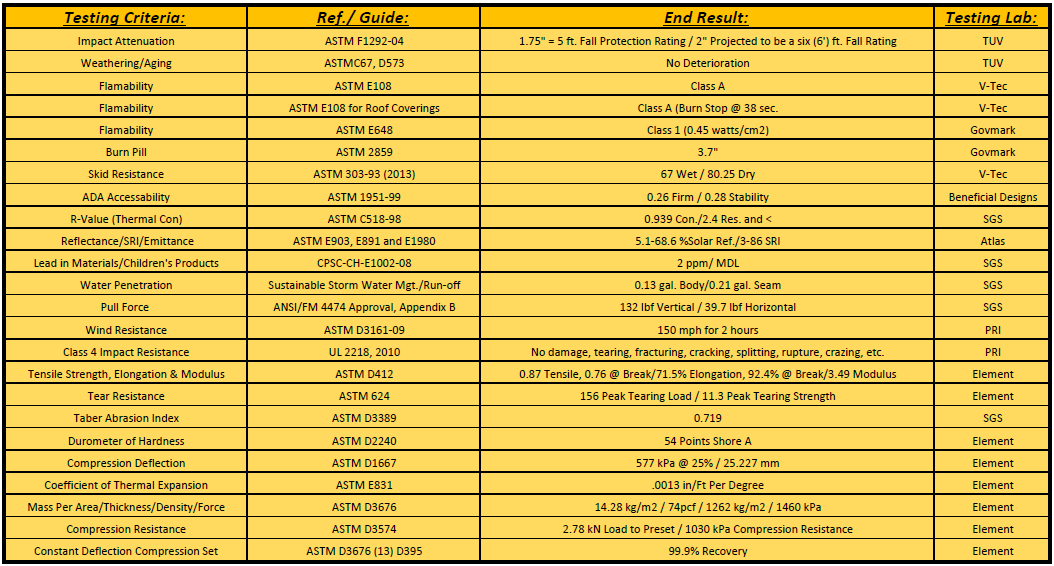

Pave-Land Testing information for use on playgrounds, rooftops, outdoor fitness and more

We undertake all assignments for our clients on a best efforts basis. Our findings and judgments are based on the information given to us using the lasted test methods available. We can only ensure the test results for the specific items tested. Unless otherwise noted in the deviations section of this report, all tests are performed in compliance with stated test method.


CAD files, Detailed Drawings, Specifications, 3-D's on Playground Surfacing and Roof Pavers


Playgrounds:

3-Part General Specification as PDF

10-Part General Specification as PDF


     Division 32

               Sub: 32 18 00 Athletic and Recreational Surfaces
                     Specifically; 32 18 16 Synthetic Resilient Surfaces.
                     Specifically; 32 18 16.33 Playground Protective Surfaces
                     Specifically; 32 18 23 Athletic Surfaces.

     Division 9

               Sub: 09 65 00 Resilient Flooring
                     Specifically: 09 65 19 Resilient Tile Flooring.
                     Specifically: 09 65 19.33 Rubber Tile Flooring.
                     Specifically: 09 65 66 Resilient Athletic Flooring.

     Division 11

                Sub: 11 68 00 Playfield Equipment and Structures
                      Specifically; 11 68 13 Playground Equipment.
                      Specifically: 11 68 16 Play Structures.


Long Version, Downloadable (Word Doc) Specifications:

PIGMENTED Top = "Pave-Land" Spec - 5FT Fall Rating - LONG Version

Solid TPV/EPDM Top = "Pave-Land" Spec - 5FT Fall Rating - LONG Version

Splash Design Top = "Pave-Land" Spec - 5FT Fall Rating - LONG Version


Short Version, Downloadable (Word Doc) Specifications:

PIGMENTED Top = "Pave-Land Spec" - 5FT Fall Rating - Short Version

Solid TPV/EPDM Top = "Pave-Land" Spec - 5FT Fall Rating - Short Version

Splash Design Top = "Pave-Land" Spec - 5FT Fall Rating - Short Version



Roofing:

3-Part General Specification as PDF

10-Part General Specification as PDF


     Division 7

               Sub: 07 32 00 Roof Tiles
                     Specifically; 07 32 29 Rubber Tiles/Panels

               Sub: 07 72 00 Roof Accessories
                     Specifically: 07 72 43 Roof Walkway Boards
                     Specifically: 07 72 46 Roof Walkways

               Sub: 07 76 00 Roof Pavers
                     Specifically: 07 76 13 Roof Ballast Pavers
                     Specifically: 07 76 16 Roof Decking Pavers

     Division 9

               Sub: 09 30 00 Tiling
                     Specifically; 09 30 19 Paver Tiling

      Division 32

               Sub: 32 14 00 Unit Paving
                     Specifically; 32 14 29 Rubber Paving
                     Specifically: 32 14 43 Porous Unit Paving


Long Version, Downloadable (Word Doc) Specifications:

PIGMENTED Top = "Pave-Land" - Roof Pavers Spec - LONG Version
Solid TPV/EPDM Top = "Pave-Land - Roof Pavers Spec - LONG Version
Splash DesignTop = "Pave-Land" - Roof Pavers Spec - LONG Version


Short Version, Downloadable (Word Doc) Specifications:

PIGMENTED Top = "Pave-Land" - Roof Pavers Spec - Short Version
Solid TPV/EPDM Top = "Pave-Land - Roof Pavers Spec - Short Version
Splash DesignTop = "Pave-Land" - Roof Pavers Spec - Short Version


If you would like a Word Doc version of the "Dual-Density" Construction, or a modified version of these specifications to fit your design needs, please go to the “Contact Us” page and fill out the form, or simply click here
